Power Take-Off Clutch - Selection Guide

Selection Guide to Duty Classification

Duty Application
Light Pumps-centrifugal, Hydraulic pumps (with out priming), Irrigation pumps, Cereal dryers, Elevators-bucket, Machines general-all types with uniform loads and non reversing, Bow thruster, Generators
Medium Agitators-solid or semi solids, Blowers & fans centrifugal, screw, Elevators-bucket or non-uniformly loaded or fed, Mixers-continuous, Pumps-two or more cylinders, Conveyors-uniformly loaded, Dredge pumps
Heavy Cranes & Hoists working clutch, Compressors-lobe rotary plus three or more cylinder reciprocal type    Drums, braking, Machines-impact lode types, Mills-ball type, Mud pumps
Extra Heavy Crushers-ore and stone, Chipper-wood, Mills-hammer type, Shaker - reciprocating type



Maximum Torque Capacity
The torque capacities shown are the maximum clutch capacities, and include saftey factors dependant upon the type of application.

    Duty Classification
Clutch Size Maximum Torque Light Medium Heavy Max. Safe Speed
Inches Nm KW KW KW RPM
6 single 118 30 20 15 3500
7 single 130 40 26 20 3200
8 single 170 45 30 24 3100
10 single 242 72 47 36 3600
11.5 single 336 92 62 46 3600
11.5 double 670 184 124 92 3600
14 single 598 140 94 70 2500
14 double 1196 280 188 140 2500
14 triple 1794 420 280 210 2500

Torque calculation: Use the formula Torque (Nm) = 9549 x Kw / rpm and the appropriate saftey factor to determine
the correct clutch size for any application. Clutch Torque Capacity = Gross Torque Capacity / Saftey Factor
Clutch size requirements should be based on peak torque capability of the engine.



Installation Reference Dimensions
P.T.O. Shaft
Type Dia Length Key PTO                     Lever Travel
  F E G dia B C H J M-dia D V W X Y L degrees
6"single 36.52mm 88.90mm 9.52x4.76mm 165.10mm 71.37mm 22.35mm 114.30mm 51.9988mm 141.22mm 76.20mm 54.10mm 33.27mm 42.67mm 30.23mm 13o
7"single 36.52mm 88.90mm 9.52x4.76mm 190.50mm 71.37mm 22.35mm 114.30mm 51.9988mm 141.22mm 76.20mm 54.10mm 33.27mm 42.67mm 30.23mm 13o
8"single 44.45mm 152.40mm 12.7x6.35mm 203.20mm 100.08mm 59.44mm 127.00mm 61.9988mm 179.32mm 76.20mm 47.75mm 29.97mm 36.58mm 61.98mm 17o
10"single 57.15mm 139.7mm 15.87x7.94mm 254.00mm 100.08mm 95.25mm 146.05mm 71.9988mm 219.20mm 76.20mm 50.80mm 38.10mm 44.45mm 53.85mm 15o
11.5"single 57.15mm 165.10mm 15.87x7.94mm 292.10mm 100.08mm 95.25mm 146.05mm 71.9988mm 234.95mm 76.20mm 81.03mm 46.48mm 57.40mm 53.85mm 15.50o
11.5"double 63.50mm 165.10mm 15.87x7.94mm 292.10mm 100.08mm 76.20mm 165.10mm 71.9988mm 244.60mm 95.25mm 103.12mm 48.77mm 58.67mm 39.62mm 15.50o
14"single 76.20mm 215.90mm 19.05x9.52mm 355.60mm 100.08mm 87.37mm 190.50mm 79.9998mm 308.10mm 114.30mm 138.18mm 61.98mm 71.63mm 25.40mm 18o
14"double 88.90mm 254.00mm 22.23x11.11mm 355.60mm 100.08mm 85.85mm 190.50mm 79.9998mm 349.25mm 114.30mm 168.40mm 60.45mm 71.63mm 25.40mm 18o
14"triple 100.02mm 254.00mm 25.40x12.70mm 355.60mm 100.08mm 85.85mm 190.50mm 79.9998mm 368.30mm 114.30mm 196.85mm 61.98mm 71.63mm 25.40mm 18o
Dimensions are for the standard range of P.T.O.'s
Pilot bearing (M diameter) supplied on application
Support plates are required for double and triple plate 14" P.T.O.'s on side loaded, and recommended for in-line applications

SAE Housings
S.A.E. Housing A R (bolt) S T (bolt holes) P (shaft) Theta
Number Diameter Circle dia O.D. Number Diameter Length Degrees
0 678mm 679mm 711.00mm 16 13.46mm 323.85mm 11o15'
1 511mm 530mm 552.45mm 12 11.94mm 247.65mm 15o
2 448mm 467mm 488.95mm 12 10.41mm 247.65mm 15o
3 410mm 429mm 450.85mm 12 10.41mm 247.65mm 15o
4 362mm 381mm 403.35mm 12 10.41mm 196.85mm 15o
5 314mm 333mm 355.60mm 8 10.41mm 196.85mm 15o
6 267mm 283mm 308.10mm 8 10.41mm 196.85mm 15o

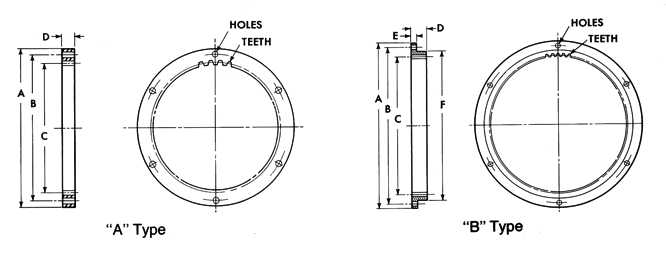

Drive Ring Dimensions
Description Type Ring O.D. Bolt Circle Nom. Pitch       Holes Teeth 20 deg PA Approx. Weight
    A B dia C D E F No. Size No. P. (kg)
6" single A 215.90mm 200.02mm 177.80mm 16.00mm - - 6 8.33mm 42 6/8 1.27
7" single A 241.30mm 222.25mm 198.83mm 16.00mm - - 8 8.33mm 47 6/8 1.54
8" single A 263.53mm 244.47mm 215.90mm 16.00mm - - 8 10.32mm 51 6/8 1.95
10" single A 314.29mm 314.17mm 295.40mm 295.15mm 267.08mm 266.95mm 22.35mm - - 8 10.32mm 63 6/8 3.18
11.5" single A 352.39mm 352.27mm 333.50mm 333.25mm 305.18mm 305.05mm 22.35mm - - 8 10.32mm 72 6/8 3.63
11.5" double A 352.39mm 352.27mm 333.50mm 333.25mm 305.18mm 305.05mm 47.75mm - - 8 10.32mm 72 6/8 8.16
14" single B 339.69mm 339.52mm 438.28mm 438.02mm 375.03mm 374.90mm 28.70mm 12.70mm 406.40mm 8 13.49mm 59 4/5 7.71
14" double B 339.69mm 339.52mm 438.28mm 438.02mm 375.03mm 374.90mm 60.45mm 12.70mm 406.40mm 8 13.49mm 59 4/5 11.79
14" triple B 339.69mm 339.52mm 438.28mm 438.02mm 375.03mm 374.90mm 85.85mm 12.70mm 406.40mm 8 13.49mm 59 4/5 14.97



Allowable Side-Pull Load (see formula below)
  X Distance in millimeters
P.T.O. Speed 25.40mm 50.80mm 76.20mm 101.60mm 127.00mm 152.40mm 177.80mm 203.20mm 228.60mm
Size R.P.M N N N N N N N N N
6"single 2000 2958 2650 2113
7"single 2000 2958 2650 2113
8"single 2000 6650 4938 3937 3270 2802
10"single 1500 10765 9742 7695 6360 5409
  2600 9119 8496 7695 6360 5409
11.5"single 1200 11699 10898 9964 8185 6984
  2400 9519 8851 8296 7784 6984
11.5"double 1200 21040 15102 12055 10031 8585 7517
  2400 15791 14813 12055 10031 8585 7517
14"single 1500 15079 11565 9430 7918 6828 6005 5382 4849
  2200 15079 11565` 9430 7918 6828 6005 5382 4849
14"double 1500 26600 20907 17259 14635 12766 11298 10097 9163
  2200 26600 20907 17259 14635 12766 11298 10097 9163
14"triple 1500 23798 22775 21574 20684 18282 16147 14501 13100 11966
  2200 21574 20684 21574 18460 17793 16147 14501 13100 11966
Allowable side-load pulls

Determine using the formula                           L =         1,954,000 x kW     x F
                                                                                         N x D

Where:
L = Effective Side Load (Kg)
N = Shaft Speed (RPM)
D = Pitch Diameter of pulley, chain on gear (mm)

F = Load Factor

       1.0 for single chain or gear drive
       1.5 for timing belts
       2.5 for all V belts
       3.0 for flat belts
       2.1 for severe shock drives
       1.8 for large inertia type drives
Note: A support plate for 2 and 3 plate 14" is required in side load applications.



Model Selection Guide

Size Model Detail Approx. Weight Kg TD Number AP Number
6" single GP1060CP5 Single Plate 6", SAE 5 24 C-106-SP5
  GP1060CP6 Single Plate 6", SAE 6 24 C-106-SP6
7" single GP1070CP4 Single Plate 7", SAE 4 25 C-107-SP4
  GP1070CP5 Single Plate 7", SAE 5 25 C-107-SP5
8" single GP1070CP3 Single Plate 8", SAE 3 33 C-108-HP3
  GP1070CP4 Single Plate 8", SAE 4 33 C-108-HP4
10" single GP1100CP3 Single Plate 10", SAE 3 52 C-110-HP3 S10B3L
  GP1100CP4 Single Plate 10", SAE 4 52 C-110-HP4 S10B4L
11.5" single GP1110SP1 Single Plate 11", SAE 1 64 SP-111-HP1 S11B1L
  GP1110SP2 Single Plate 11", SAE 2 64 SP-111-HP2 S11B2L
  GP1110SP3 Single Plate 11", SAE 3 64 SP-111-HP3 S11B3L
11.5" double GP2110SP1 Double Plate 11", SAE 1 80 SP-211-HP1 D11B1L
  GP2110SP2 Double Plate 11", SAE 2 70 SP-211-HP2 D11B2L
  GP2110SP3 Double Plate 11", SAE 3 70 SP-211-HP3 D11B3L
14" single GP1140SP1 Single Plate 14", SAE 1 118 SP-114-P1 S14B1L
14" double GP2140SP1 Double Plate 14", SAE 1 150 SP-214-P1 D14B1L
14" triple GP3140SP0 Triple Plate 14", SAE 0, 80mm pilot 186 SP-314-P0 T14A0L80
    Triple Plate 14", SAE 0, 100mm pilot 186 SP-314-P0 T14A0L100
  GP3140SP1 Triple Plate 14", SAE 1, 80mm pilot 186 SP-314-P1 T14A1L80
    Triple Plate 14", SAE 1,  100mm pilot 186 SP-314-P1 T14A1L100
