Funk  59000 S E R I E S TRIPLE  Pump Drives (WIDE)
.
 RATINGS PUMP ROTATION
  Input Torque (Max.): 1250 lb.-ft (1693Nm) Anti - Enginewise
  Output Torque (Max.): 650 lb.-ft (880Nm) per pump pad OIL
  Input or Output Speed (Max.): 3000 rpm

Any oil which meets EP gear lubrication Spec MIL-L-2105C

or API classification GL-5

  Input Power (Max.): 700hp (521kW) APPROXIMATE WEIGHT
  Output Power (Max.): 360hp (268kW) per pump pad 593WXPX-290 lb (132kg)  593WXRX-265 lb (120kg)  593WXCX-370 lb (168kg)
.
 OPTIONS SELECTION
MODELS

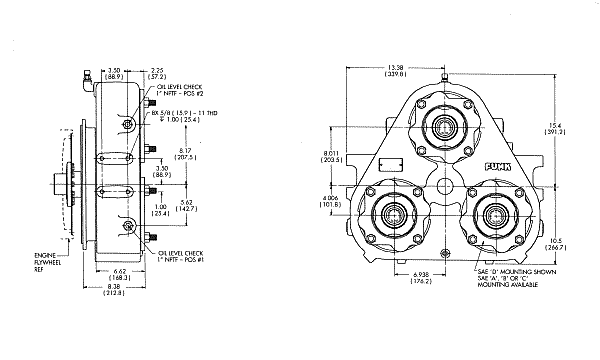

59WXXPXX  Engine Mounted

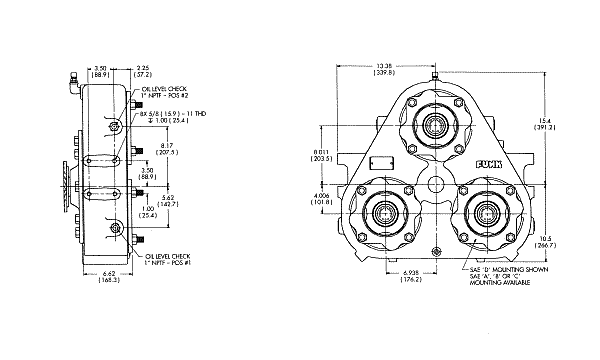

593WXRX  Remote Mounted

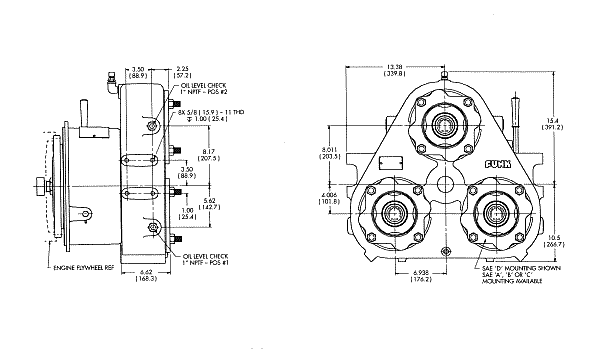

593WXXCXX  Clutch Driven
