Funk  59000 S E R I E S TRIPLE  Pump Drives
.
 RATINGS PUMP ROTATION
  Input Torque (Max.): 1250 lb.-ft (1693Nm) Anti - Enginewise
  Output Torque (Max.): 650 lb.-ft (880Nm) per pump pad OIL
  Input or Output Speed (Max.): 3000 rpm

Any oil which meets EP gear lubrication Spec MIL-L-2105C

or API classification GL-5

  Input Power (Max.): 700hp (521kW) APPROXIMATE WEIGHT
  Output Power (Max.): 360hp (268kW) per pump pad 593PXPX -290 lb. (132kg)  593PFX -265 lb. (120kg)  593PXCX -370 lb. (168kg)
.
 OPTIONS SELECTION
MODELS

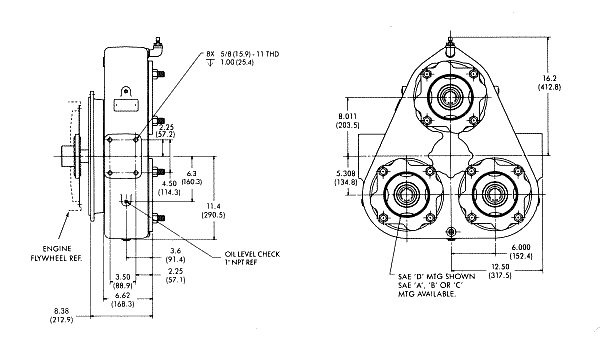

593PXXPXXX  Engine Mounted

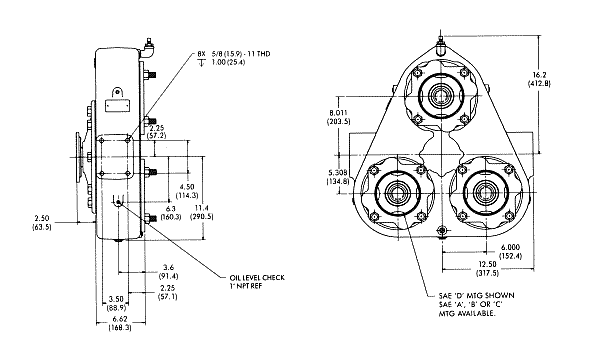

593PFXX  Remote Mounted

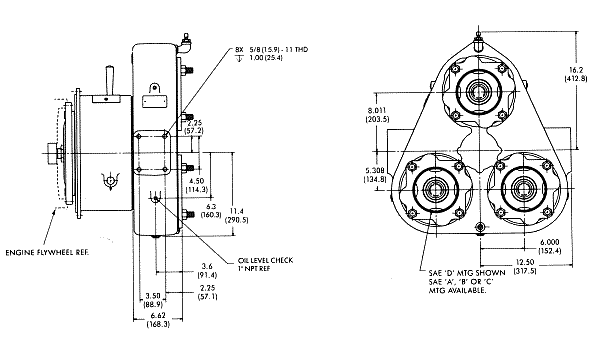

593PXXCXXX  Clutch Driven
