Funk  28000 S E R I E S DOUBLE  Pump Drives  6 INCH (152.7mm) GEAR CENTRES
.
 RATINGS PUMP ROTATION
  Input Torque (Max.): 650 lb.-ft (880Nm) Anti - Enginewise
  Output Torque (Max.): 650 lb.-ft (880Nm) per pump pad OIL
  Input or Output Speed (Max.): 3000 rpm

Any oil which meets EP gear lubrication Spec MIL-L-2105C

or API classification GL-5

  Input Power (Max.): 360hp (268kW) APPROXIMATE WEIGHT
  Output Power (Max.): 360hp (268kW) per pump pad 2826XPX- 175 lb (80kg)  2826XRX-165 lb (75kg)  2826XCX-230 lb.(105kg)
.
 OPTIONS SELECTION
MODELS

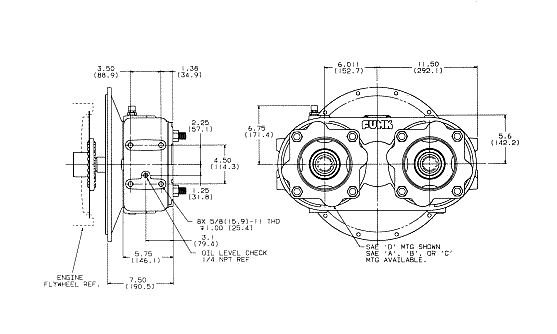

2826XXPXX  Engine Mounted

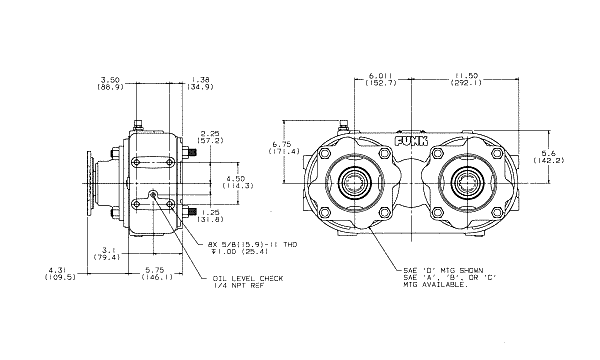

2826XRX  Remote Mounted

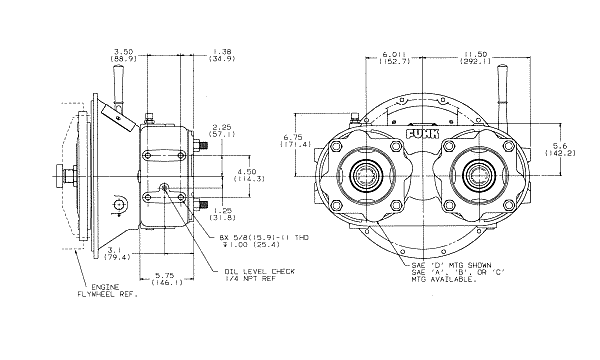

2826XXCXX  Clutch Driven
