Funk  28000 S E R I E S DOUBLE  Pump Drives  5 INCH (127mm) GEAR CENTRES
.
 RATINGS PUMP ROTATION
  Input Torque (Max.): 650 lb.-ft (880Nm) Anti - Enginewise
  Output Torque (Max.): 575 lb.-ft (779Nm) per pump pad OIL
  Input or Output Speed (Max.): 3000 rpm

Any oil which meets EP gear lubrication Spec MIL-L-2105C

or API classification GL-5

  Input Power (Max.): 360hp (268kW) APPROXIMATE WEIGHT
  Output Power (Max.): 325hp (242kW) per pump pad 28102X - 160 lb. (73kg)  28104X - 150 lb. (68kg)  28180X - 215 lb. (98kg)
.
 OPTIONS SELECTION
MODELS

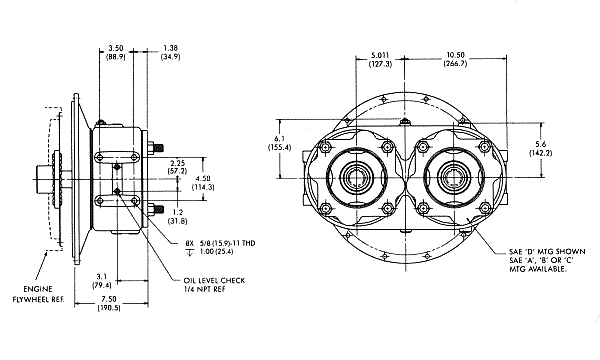

28102X  Engine Mounted

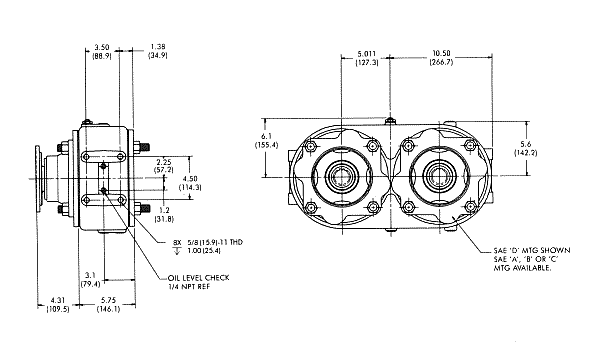

28104X  Remoted Mounted

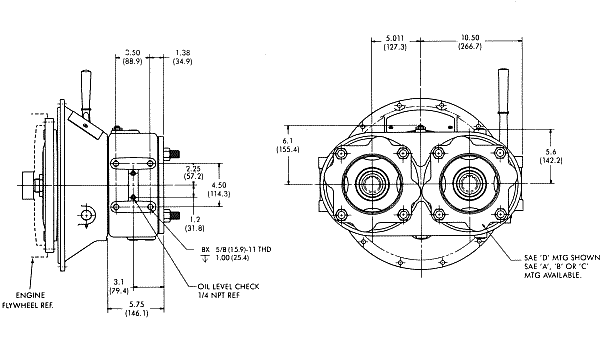

28180X  Clutch Driven
