Funk  28000 S E R I E S SINGLE Direct Drive  Pump Drives

MODELS

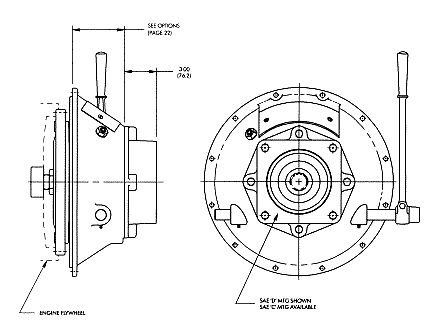

28TXXXXX  Clutch Driven
RATINGS
Input Torque (Max.): Clutch Dependent
Input Speed (Max.): Clutch Dependent
PUMP ROTATION
Enginewise
APPROXIMATE WEIGHT
28TXXXXX - 120 lb. (55kg)

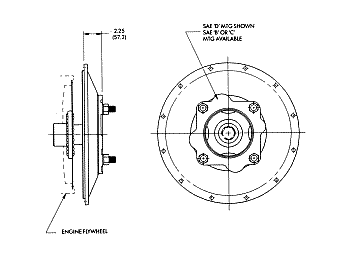

28105X  Engine Mounted
RATINGS
Input Torque (Max.): 650 lb.-ft (880Nm)
Input Speed (Max.): As Required
Input Power (Max.): 360hp (268kW)
PUMP ROTATION
Pump Rotation: Enginewise
APPROXIMATE WEIGHT
28105X - 50 lb. (23kg)

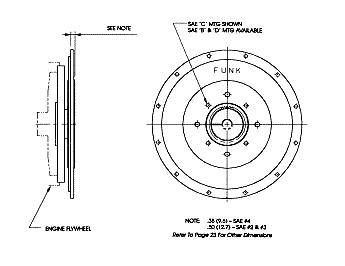

28FC  Engine Driven
RATINGS
Input Torque (Max.): 650 lb.-ft (880Nm)
Input Speed (Max.): As Required
Input Power (Max.): 360hp (268kW)
Pump Rotation: Enginewise
Approximate Weight: 35 lb. (16kg)
FLYWHEEL COVERS
SAE Sizes 2, 3 or 4
PUMP ADAPTIONS
SAE Sizes B, BB, C or D
DRIVE FLANGE SIZES
Nominal ClutchSize 10" (254mm) or 11.5" (292mm)

OPTIONS SELECTION
